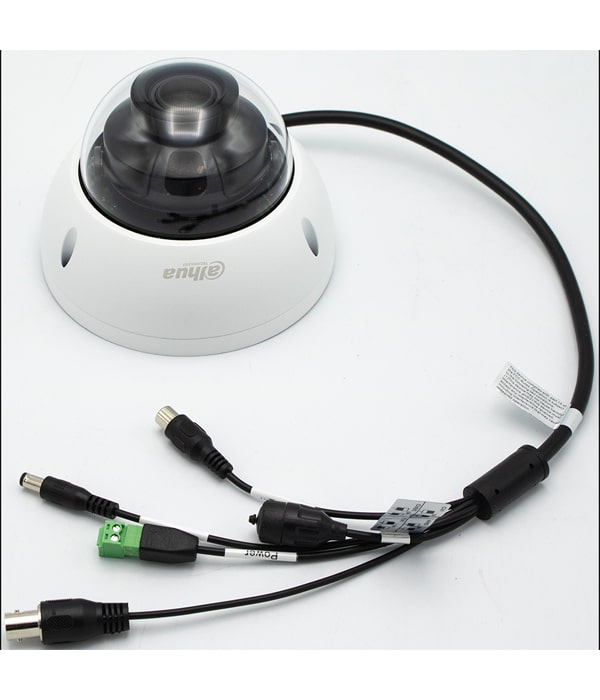

Dahua A22CMAZ 2MP IR Vari-focal HDCVI Dome

2MP HDCVI Starlight Dome 2.7-13.5mm Multi-format
Experience the superior clarity of Dahua?s 2 MP HDCVI camera for vast coverage and superior image details. The 2 MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera offers a motorized zoom lens, a multi-language On-screen Display, and HD/SD switchable output. The camera is ideal for hosting diverse applications ? Starlight Technology and True Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.

Dahua A22CMAZ 2MP IR Vari-focal HDCVI Dome



  • 1/2.8-in. 2 MP Progressive-scan CMOS Sensor
  • 2 MP (1920 x 1080) at 30 fps Maximum Resolution
  • 2.7 mm to 13.5 mm Motorized Lens
  • Starlight Technology for Low-light Applications
  • True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
  • Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
  • HD or SD Output, Switchable
  • Maximum IR Length 30 m (98 ft), Smart IR
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty (for products sold through an authorized Dahua dealer)
Weight 1.08 lbs
Dimensions 17.52 × 17.5 × 16.99 cm

Night Vision Range

Lens Type

Lens Size
