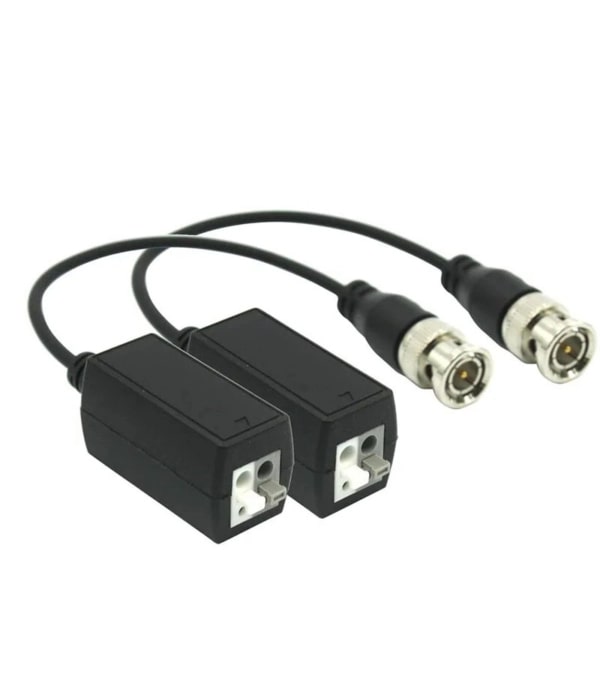

Dahua DH-PFM800-4MP 4MP Passive HDCVI Balun

SKU : DH-PFM800-4MP Category

Single-channel passive receiver and transmitter (balun) of HDCVI video signal over twisted pair with signal quality 4 Mp: 200 meters, 720P: 400 meters, 1080P: 250 meters over UTP cat5e/6 cable. The set includes a transmitter for installation on a camera and a receiver with a plug on the wire for connecting to the recorder. Input – BNC, output – fastening for a push terminal. ABS plastic body. Increased noise immunity up to 60 dB.

Dahua DH-PFM800-4MP 4MP Passive HDCVI Balun



  • Real-time transmission over UTP CAT5E/6 cable;
  • Passive, no need for power supply;
  • Resolution: 720p, 1080p, 4 MP
  • Transmission Distance: 200 m (656.17 ft) for 4 MP
