Dahua DHI-ITC237-PU1B-IR 2MP IR LPC Bullet IP Security Camera – License Plate Capture

2MP License Plate Capture IR 1-2 Lanes Bullet Camera

Dahua DHI-ITC237-PU1B-IR 2MP IR LPC Bullet IP Security Camera – License Plate Capture


The DHI-ITC237-PU1B-IR is a license plate capture camera with a recording resolution of 1920 x 1080 (1080p) at 30 frames per second with a 1/2.8-in STARVIS? CMOS sensor. The camera includes a 5 mm to 50 mm vari-focal lens that lets the installer adjust the zoom angle of the picture, providing a 50? to 5.6? horizontal angle of view. The camera can capture license plates of vehicles traveling up to 25 mph (40 kph). The camera can be mounted between 4 m and 30 m (13 ft and 98 ft) from where the vehicles will be traveling and can capture plates from two lanes at once. The DHI-ITC237-PU1B-IR coupled with a Dahua NVR or DSS Video Management System offers a complete traffic management and parking solution.

License Plate Capture: The License Plate Capture camera paired with an LPC-enabled NVR or the DSS Video Management System creates a system that automatically captures and stores vehicle license plate images. During playback, an operator can perform a license plate search by Time and Date to view thumbnail images of all plates captured during the specified time period. License plate capture technology offers effective entrance/exit management, traffic surveillance, and parking lot monitoring.

Ultra Wide Dynamic Range: The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, Ultra WDR (140 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.

Environmental: With a temperature range of ?30 ?C to +60 ?C (?22 ?F to +140 ?F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP66 rating makes it suitable for demanding outdoor applications.

Protection: Supporting ?30% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.



  • 1/2.8-in STARVIS CMOS Sensor
  • 2 MP

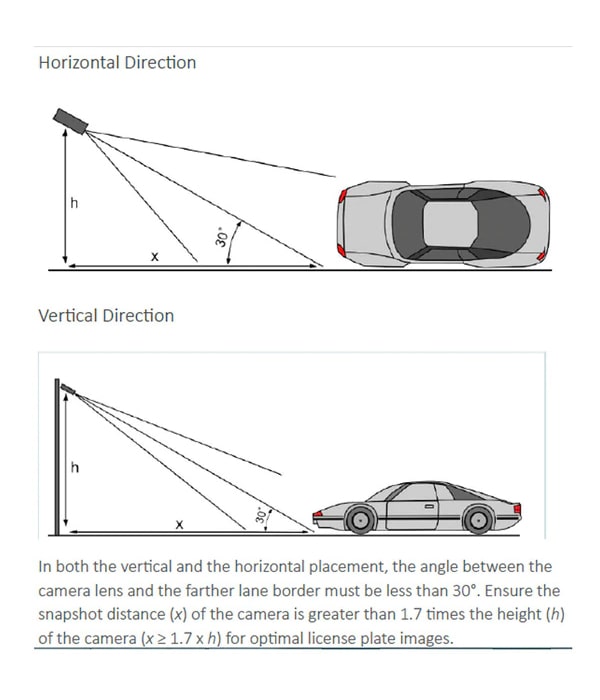

  • License Plate Capture Distance up to 40 m (131 ft)
  • Capture License Plates in up to Two (2) Lanes
  • Dual-stream Encoding
  • H.265 and H.264 Dual Codec
  • 1080p at 30 fps Maximum Resolution
  • 5 mm to 50 mm Vari-focal Lens
  • Ultra Wide Dynamic Range (140 dB) and True Day/Night (ICR)
  • Maximum IR LED Distance 40 m (131 ft)
  • IP66 Ingress Protection
  • Five-year Warranty*

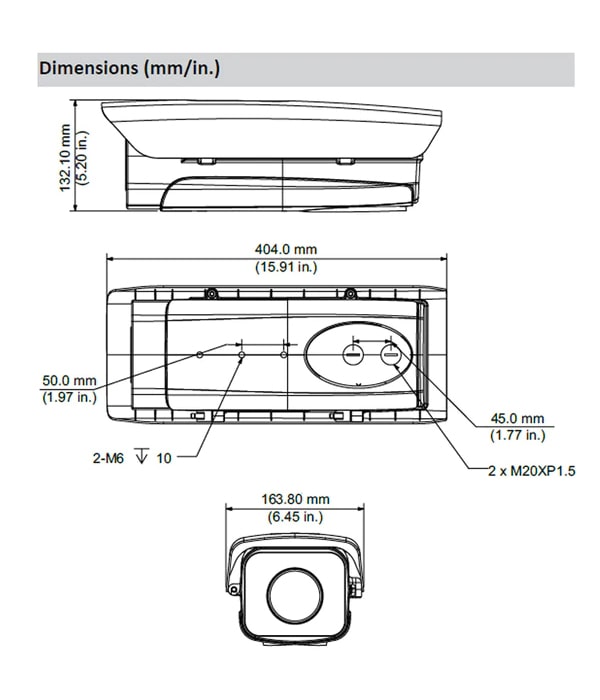

Dimensions 1143 × 609.6 × 596.9 cm

Lens Type

Lens Size



Night Vision Range


Field Of View (Horizontal)



There are no reviews yet.

Be the first to review “Dahua DHI-ITC237-PU1B-IR 2MP IR LPC Bullet IP Security Camera – License Plate Capture”

Your email address will not be published. Required fields are marked *

DHI-ITC237-PU1B-IR Datasheet
