LTS CMIP3322W-28M 2MP IR H.265 Outdoor Turret IP Security Camera

SKU : CMIP3322W-28M Categories ,

2MP, 1920×1080@30fps, 2.8mm, Matrix IR 2.0, IR Range up to 100ft, H.265, H.265+, H.264, H.264+ Ready, True WDR 120dB, IP67, MicroSD Slot up to 128GB, DC 12V, PoE

Request Quote

LTS CMIP3322W-28M 2MP IR H.265 Outdoor Turret IP Security Camera



Features:

  • 2MP High Definition,
  • Up to 1920×1080@30fps
  • 2.8mm Fixed Lens
  • IR Range up to 100 feet
  • H.265, H.265+, H.264, H.264+ MJPEG
  • True WDR 120dB
  • IP67 Weatherproof
  • MicroSD Slot up to 128GB
  • DC 12V, PoE
  • Dimensions:5.01? x 3.78 ( 127.3 x 95.9 mm)
  • ONVIF
Weight 0.62 lbs
Brand

Field Of View (Horizontal)

Compression

, , , ,

Night Vision Range

Lens Type

Technology

Resolution

Lens Size

Color

Warranty

Specifications

Camera
Image Sensor 1/3″ Progressive Scan CMOS
Min. Illumination 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm
Lens Mount M12
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range True WDR 120dB
Angle Adjustment Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression Main stream: H.265/ H.264
Sub stream: H.265/H.264/ MJPEG
Third stream: H.265/ H.264
H.265 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual Stream Support
Max. Resolution 2560×1920
Main Stream 60Hz: 20fps (2560×1920), 30fps (2048×1536), 30fps(1920×1080), 30fps(1280×720)
50Hz: 20fps (2560×1920), 25fps (2048×1536), 25fps(1920×1080), 25fps(1280×720)
Sub Stream 60Hz: 30fps (352×240, 640×480) 50Hz: 25fps (352×288, 640×480)
Others Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Password Protection, IP Address Filtering, Anonymous Access, Watermark
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Yes
General
Working Temperature
/Humidity
-22 °F ~ 140 °F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC 12V ± 10%, PoE (802.3af)
Power Consumption Max. 5.5W (Max. 7.5W with ICR on)
IR Range Up to 100ft
Weather Proof Ratings IP67

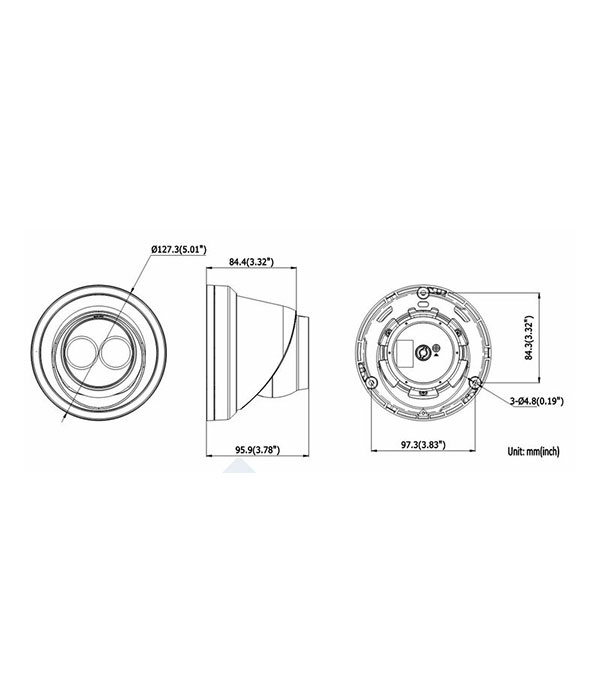

Dimensions 5.01″ × 3.78″ (Φ 127.3 × 95.9 mm)
Weight 1.4 lb. (620 g)

Reviews

There are no reviews yet.

Be the first to review “LTS CMIP3322W-28M 2MP IR H.265 Outdoor Turret IP Security Camera”

Your email address will not be published. Required fields are marked *

CMIP3322W-28M Spec Sheet

Download

CMIP3322W-28M User Manual

Download
