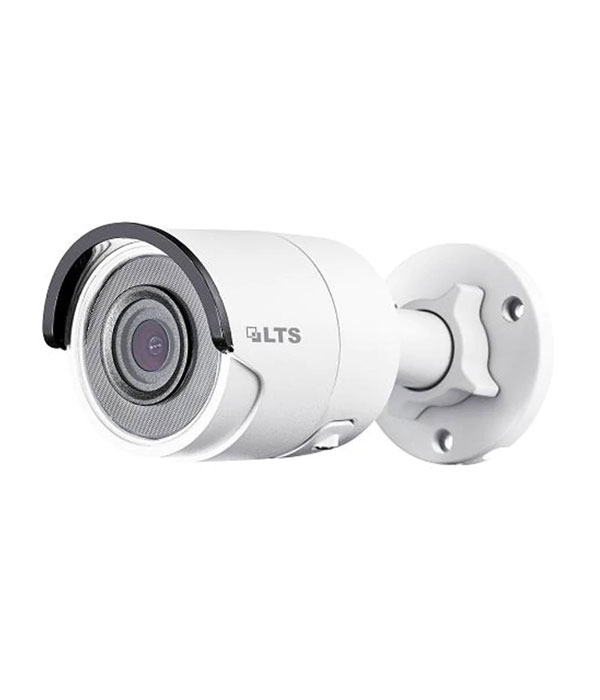

LTS CMIP8342W-M 4MP IR H.265 Outdoor Bullet IP Security Camera

SKU : CMIP8342W-M Categories ,

4MP, 2560×1520@30fps, 4mm, 0.018 Lux @ F1.6, Matrix IR 2.0, IR Range up to 100 feet, H.265, H.265+, H.264, H.264+ Ready, True WDR 120dB, IP67, MicroSD Slot up to 128GB, DC 12V, PoE, VCA

Request Quote

LTS CMIP8342W-M 4MP IR H.265 Outdoor Bullet IP Security Camera



Features:

  • 4MP
  • 1/3″ Progressive Scan CMOS
  • 2560 x 1440@30fps
  • 4 mm fixed lens
  • IR range up to 98ft
  • Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • H.265+, H.265, H.264+, H.264
  • Three streams
  • 120dB WDR
  • 2 Behavior analyses, and face detection
  • BLC/3D DNR/ROI
  • Weatherproof IP67
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
  • 3-Axis adjustment
  • ONVIF
  • Dimensions: 70 mm x 155 mm ( 2.8″ x 6.1″)
Brand

Field Of View (Horizontal)

Compression

, , ,

Lens Type

Technology

Resolution

Lens Size

Color

Warranty

Night Vision Range

Specifications

Camera Series Platinum Series
Camera Resolution 4MP
Camera Technology IP / Network
Camera Housing Bullet
Featured Product No
Specifications
Camera
Image Sensor  1/3” sensor
Min. Illumination Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens 4mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°
Lens Mount M12
Day & Night ICR
Digital Noise Reduction 3D DNR
Wide Dynamic Range True WDR 120dB
Compression Standard
Video Compression Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Bit Rate 256 Kbps to 16 Mbps
Dual stream Yes
Max. Resolution 2688 × 1520
Frame Rate 60Hz: 15fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720)
50Hz: 12.5fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720)
Image Settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network Storage NAS ( iSCSI optional)
Alarm Trigger Motion detection.tampering alarm
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos (SIP, SRTP, IPv6 optional)
System Compatibility ONVIF, PSIA, CGI
General functionalities Flickerless, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface 1 RJ45 10M / 100M ethernet port
General
Working Temperature
/Humidity
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 25%, PoE (802.3af)
Power Consumption Max. 6W
Ingress protection level IP67
IR Range  up to 30m
Dimension  70 mm × 155 mm (Φ 2.8″ × 6.1″)
Weight 410 g (0.9 lb.)
