Name: LTS LTN8716K-P16 16 Channel 4K Network Video Recorder - Nexlar E-Commerce
SKU: LTN8716K-P16

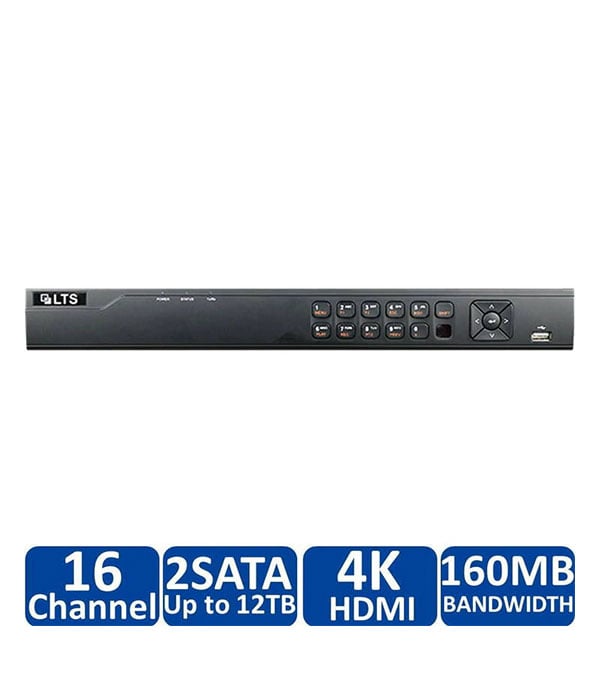

LTS LTN8716K-P16 16 Channel 4K Network Video Recorder

Features:

Specifications

Video/Audio Input
IP Video Input	16-CH
Two-Way Audio Input	1-CH, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming Bandwidth	160Mbps
Outgoing Bandwidth	160Mbps
Remote Connection	128
Video/Audio Output
Recording Resolution	8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output	4K (3840 × 2160)/20Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output	1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Output	1-CH, RCA (Linear, 1kΩ)
Decoding
Decoding Format	H.265/H.264/H.264+/MPEG4
Recording Resolution	8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16 -ch
Capability	2-ch @ 4K, or 8-ch @1080p
Hard Disk
SATA	2 SATA Interfaces for 2 HDDs
Capacity	Up to 6TB for Each Disk
External Interface
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
USB Interface	1 × USB 2.0 and 1 × USB 3.0
Alarm In/Out	4/1
PoE
Interface	16RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
Max. Power	≤200W
Supported Standard	IEEE 802.3 af/at
General
Power Supply	100~240V AC
Consumption	≤ 15W
Working Temperature	14°F – 131°F(-10 °C ~ +55 °C)
Working Humidity	10% – 90%
Casing	15-inch rack-mounted 1U chassis
Dimension	380 × 315× 52 mm (15″ × 12.4″ × 2.0″)
Weight	≤ 1 kg (2.2 lb)
