Mobotix MX-MD1A-5-IR 5MP Indoor IP MicroDome Camera, 2.8mm

SKU : MX-MD1A-5-IR Categories ,

MOBOTIX MOVE Indoor MicroDome Network Camera Mx-MD-5-IR ? Max. Image Resolution: 5M (2720×1976), 1/2.7″ Progressive CMOS ? ONVIF S/G/T dome camera with integrated IR LEDs (up to 15 m) for day and night operation ? Automatic changeover from color to B/W image (mechanical IR cut filter) ? Fixed lens (F2.0: 2.8 mm), viewing angle H: 108.3?, V: – 76.5 ?) ? 3-axis lens adjustment ? Indoor, IK8 ? Ambient temperature -30 to 55?C, humidity 10 to 90% non-condensing ? Video codecs: H.264, H.265, MJPEG (up to 4 video-streams simultaneously ) ? True WDR (120 dB) ? Max. Frame rate: 5MP H.264, H.265 @ 30 fps; MJPEG: 1080p @ 30 fps ? Power supply: PoE IEEE802.3af, max. 5.09 W ? MTBF: 95.000h ? Warranty: 5 years

Mobotix MX-MD1A-5-IR 5MP Indoor IP MicroDome Camera, 2.8mm

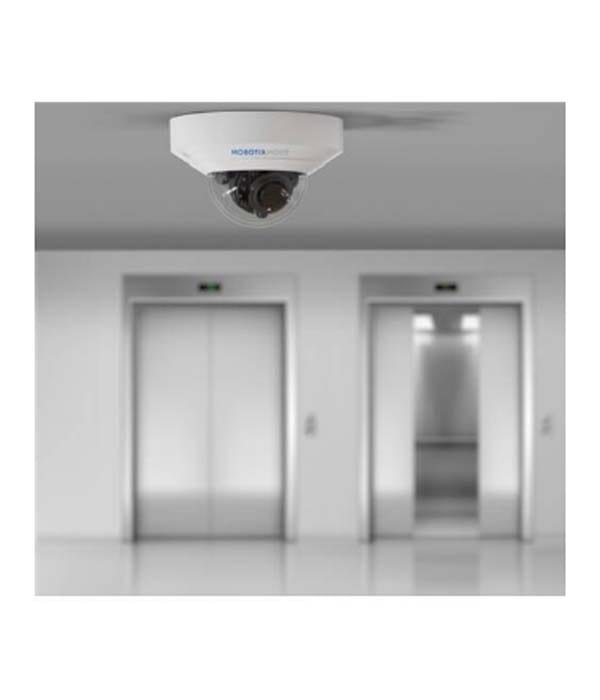

The MOBOTIX MOVE 5MP Indoor MicroDome camera is equipped with an extremely robust 3-axis gimbal system. Thanks to this 3-axis technology, the fixed focal length lens can be manually aligned very easily in the optimal position to the coverage area, even if the camera has to be mounted on a wall or slope, for example. The result: high-resolution images with up to 5 megapixels in color or black and white – the IR illumination provides clear visibility around the camera at a distance of up to 15 meters even in complete darkness. Thanks to integrated WDR of the latest MOBOTIX MOVE generation, more details are captured even in the most demanding lighting situations, e.g. in rooms with large glass surfaces, in entrance areas, hallways or staircases.


  • Model number Mx-MD1A-5-IR
  • GTIN code 4047438042475
  • Brand Mobotix
  • Category IP Cameras Dome
  • Basic Functionality Day and night Audio support Local Storage
  • Resolution 5MP – 7MP
  • Mobotix Series Move
  • Encoding H264 H265 MJPEG


  • High resolution up to 5 megapixels in color or black and white
  • Audio support (microphone and speaker integrated)
  • Day/night function with automatic IR-cut filter
  • Image rotation: 90?, 180?, 270
  • Up to four individually configurable streams in H.264/H.265/MJPEG


Lens Type

Lens Size



, ,
