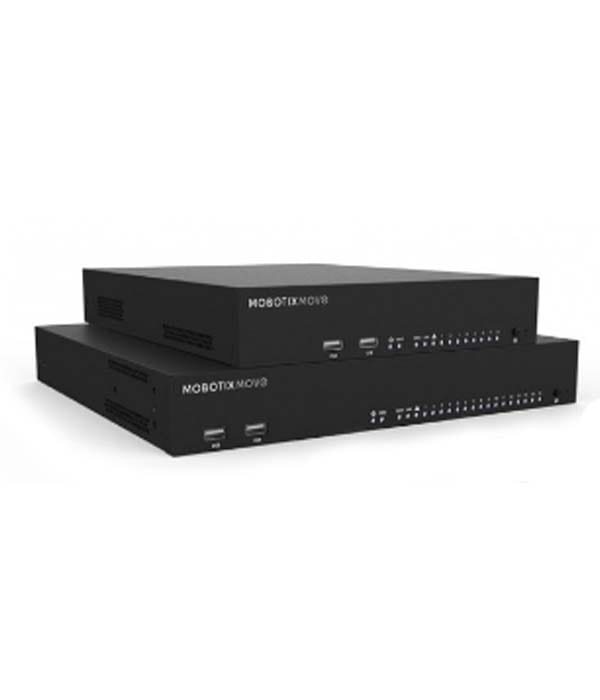

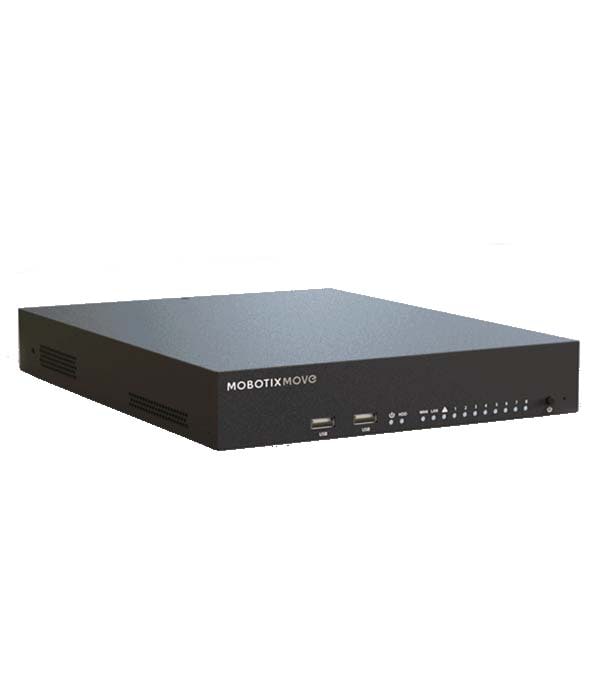

Mobotix MX-S-NVR1A-8-POE 8CH PoE IP Camera NVR – 20TB

SKU : MX-S-NVR1A-8-POE Category

MOBOTIX MOVE NVR Network Video Recorder with 8 integrated PoE IP-Camera Channels (12 IP-Cameras total support) ? Max. Storage capacity net (internal & external): 20 TB (2x 3.5? SATA3) ? Delivery without hard disks (not available via MOBOTIX) ? IP-Data-Throughput (Live & Recording): 80 up to peak 120Mbps ? Recording & Playback: H.264 / H.265 ? Support of ONVIF S conformant 3rd Party cameras ? Incl. Power cable with EU plug (cable with US / GB / AU plug available on request) ? APP remote access (IOS / Android), Live, Playback ? iSCSI NAS Storage support

Mobotix MX-S-NVR1A-8-POE 8CH PoE IP Camera NVR – 20TB

The MOBOTIX MOVE NVR “Plug & Play” series has been exclusively designed to support the MOBOTIX MOVE IP Camera series with powerful recording by deep integration protocols out-of-the-box. The integrated 8-port PoE switch allows direct connection of IP cameras without extra power supply. NVRs are equipped with M.2 (M-Key) and iSCSI communication interfaces that provide for seamless adaptation to the requirements of the installation. The web management interface allows monitoring and configuring PoE power consumption, network connection quality, and controlling the PoE power support of ONVIF S-conformant 3rd-party cameras. This provides flexibility in mixed camera environments besides the recommended usage with MOBOTIX MOVE IP camera series for full feature support. The MOBOTIX IoT camera range is fully integrated via ONVIF S.


  • Just plug & play: Connect cameras and monitor to MOBOTIX MOVE NVR and directly see live images
  • Everyday use does not require any specialized video knowledge
  • Direct connection of up to two high-resolution displays, keyboard, mouse and joystick
  • One or two additional hard disk drives (HDD) per NVR required for storage functionality
  • Once installed, the MOBOTOX MOVE NVR system does not incur any further costs


  • 2MP Full HD up to 4K IP camera support

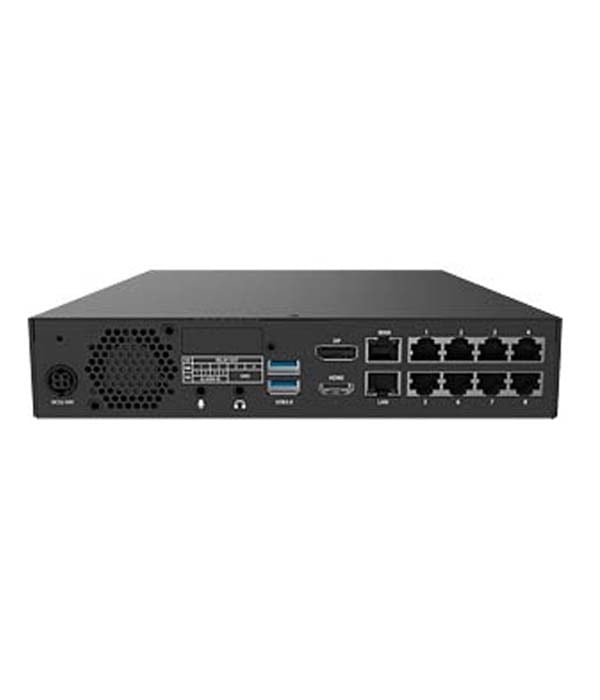

  • Integrated PoE switch (8 ports) for Plug & Play MOVE camera integration
  • Support of MOBOTIX IoT cameras and 3rd-party cameras via ONVIF S protocol
  • H.264/H.265 recording and playback
  • Full HD local dual display/monitor output (HDMI/Display Port)
  • iSCSI external NAS storage support
  • iOS & Android app support provides convenient mobile access to live and recorded video on the NVR




, , ,
