Akutel AKT-28-E Waist Height Turnstile Single Leg Single Sided

Oinone AKT-28-E Waist Height Turnstile Single Leg Single Sided

Waist Height Turnstiles are robust products functioning indoor or outdoor, provide access control in areas requiring moderate level of security.

Waist Height Turnstiles are designed for effective control of pedestrian access by allowing optimized flow in a wide range of busy and crowded areas such as Public Transportation Areas, Metro, Tram and Train Lines, Airports, Factories, Trade Centers, Public Buildings and Banks, Schools, Universities and Libraries. Since they enable passage of only single person at a time, they allow security team to prevent or restrict potential problems effectively.

Specifications

Material

Main Body: AISI- 304 – Stainless Steel – Scotch Brite (Op. AISI-316 Quality)
Tripod Arms: Q32 mm dia – Stainless Steel – Arms can be dismantled or mounted one by one separately.

Standard Dimensions

AKT-28-E: 28 x 45 x 97 cm ( W x L x H )
AKT-28-A: 28 x 45 x 105 cm ( W x L x H )
AKT-28-G: 28 x 40 x 105 cm ( W x L x H )

Rotor Systems

With rotating control; tripod arms are positioned at 120 degrees.

Rotation Control

Self centering and smooth operation is handled by means of spring and hydraulic damping mechanism.

Energy / Operating Voltage

110 – 240V AC 50/60 Hz (+/- %10)

Control Systems

All inputs are opto-coupler protected. Compatible with all access control systems that provide dry contact or grounding outputs.

IP Rating

IP 54

Flow Rate

30 Passage / Minutes / Normally Standard

Operating Temperature

-20° C / + 50° C

Operation

Bi-Directional operation feature. Entrance-Exit

Number of Passage Lanes

Single Unit

Indicators Features

AKT-28-E: Entrance – Green Arrow / Exit – Red Cross
AKT-28-A: Entrance – Green Arrow / Exit – Red Cross
AKT-28-G: Passage Free – Green / Passage Closed – Red / Standby – Blue

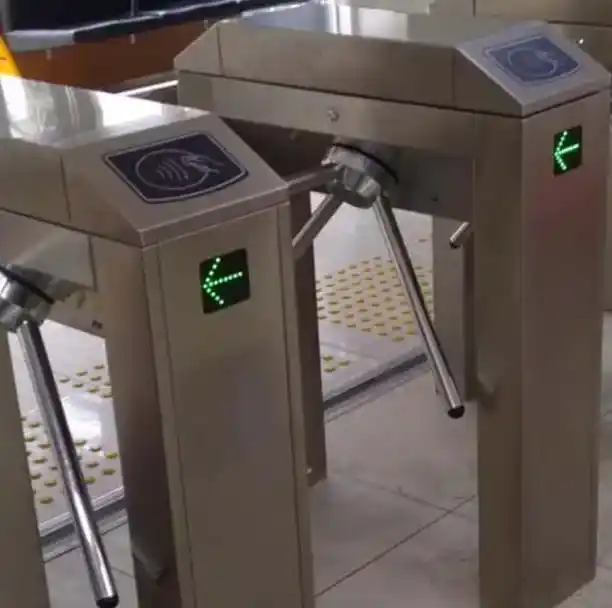

Optional Turnstile Accessories

If you have special needs you can customize your entrance solution by these optional accessories. Please contact our experts, describe your needs and get more information.

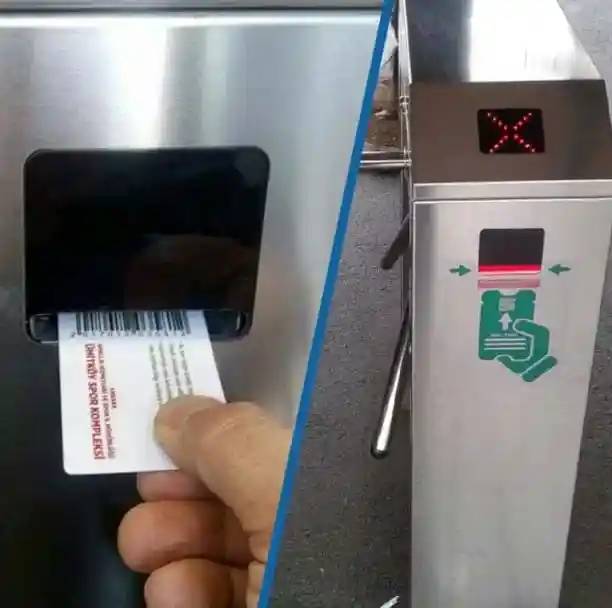

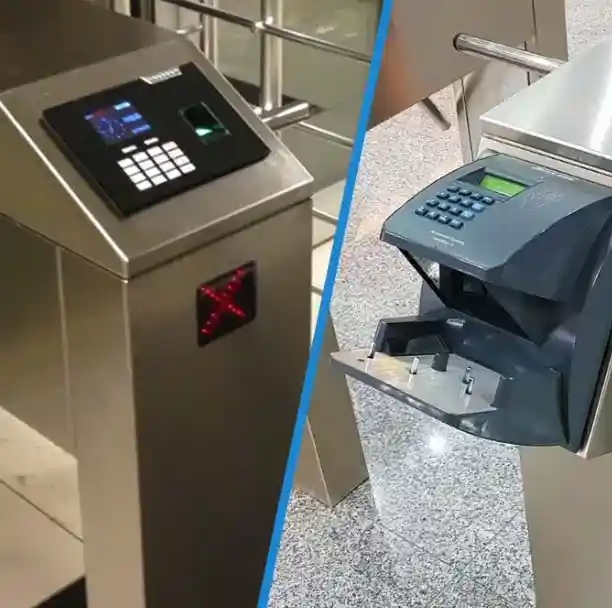

Card Pass Applications

Special cover designs are applied to make card reader units of different types and sizes appear integrated on the turnstile.

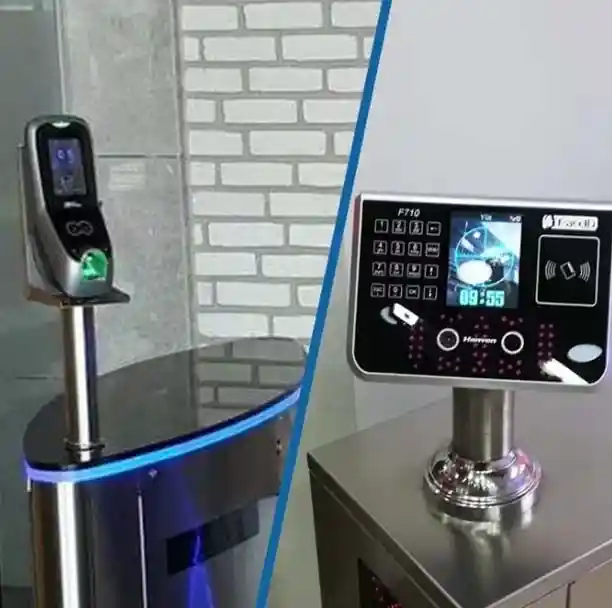

Fingerprint / Handprint Reader Applications

Special cover designs are applied to make fingerprint and handprint reading units of different design and size appear integrated on the turnstile.

Face Recognition Applications

Special cover designs are applied to make face reading units of different design and size appear integrated on the turnstile.

Floor Mounting Plate

Ease of modular installation with anti-skid bottom platform. Ease of installation in difficult ground conditions. Front and rear ramp system for easy access.

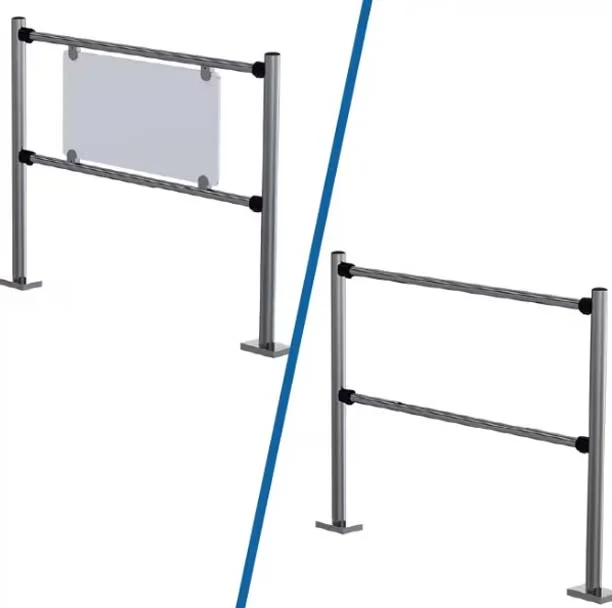

Separator

Spacebar of the central portion, optionally, glass, plexiglass, to close with dekota types of material properties are available. Ability to shorten optional intermediate pipes.

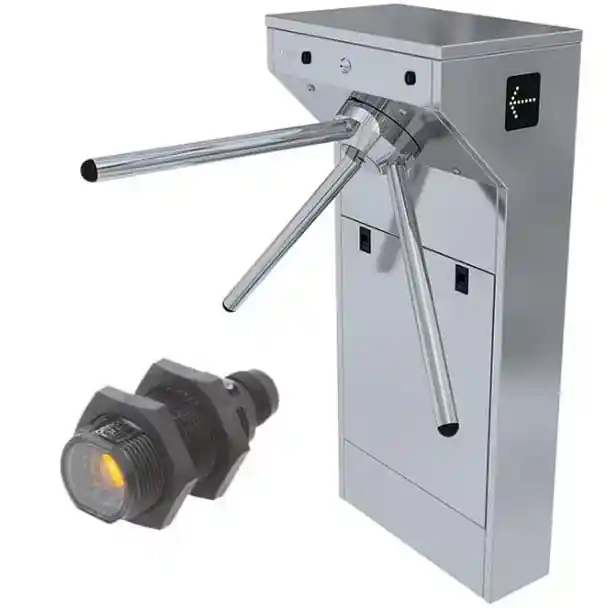

Passage Tracking Sensors

Sensors can be deployed on the turnstile in accordance with required functions such as real-time passage signal or unauthorized passage alarm. 2 Sensors for one passage is available for bi-directional operation.

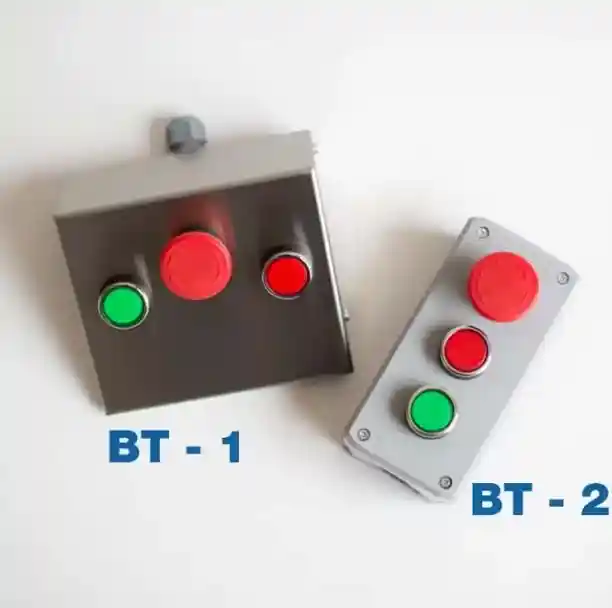

Button Control Unit

Provides remote control in security huts, security rooms. “Entry – Exit – Emergency” modes. BT-1 and BT-2 type options.

Counter

Provides remote control in security huts, security rooms. “Entry – Exit – Emergency” modes. BT-1 and BT-2 type options.

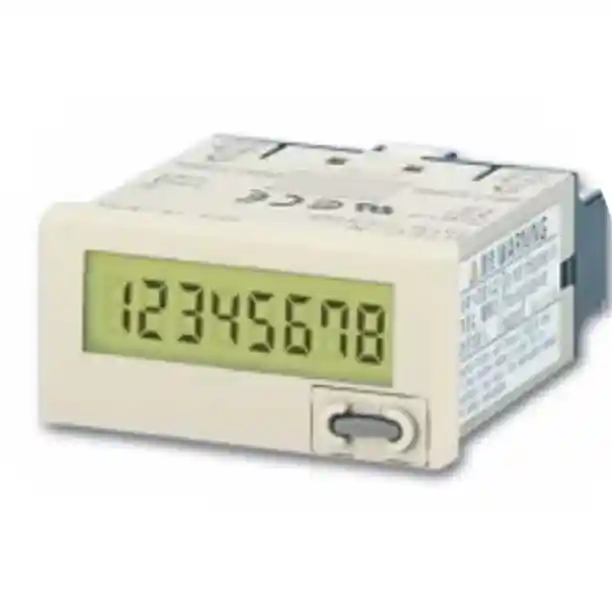

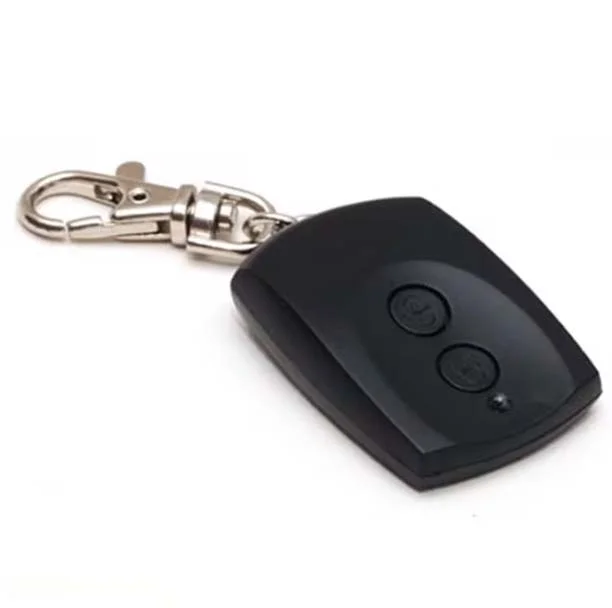

Remote Control

8-digit segment display is available. To be able to keep the memory of a power failure, be able to count on dry contact and voltage, reset capability. 10 years battery life.

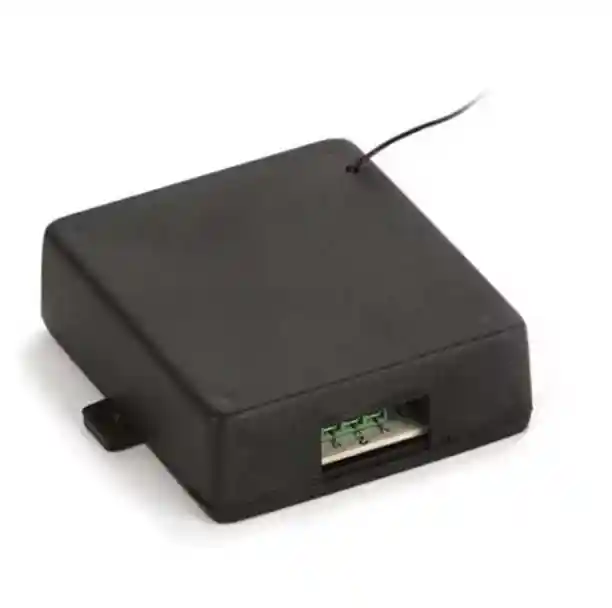

Receiver Unit

1 Unit, working with 23V type 12V battery. 433.920MHz working frequency.

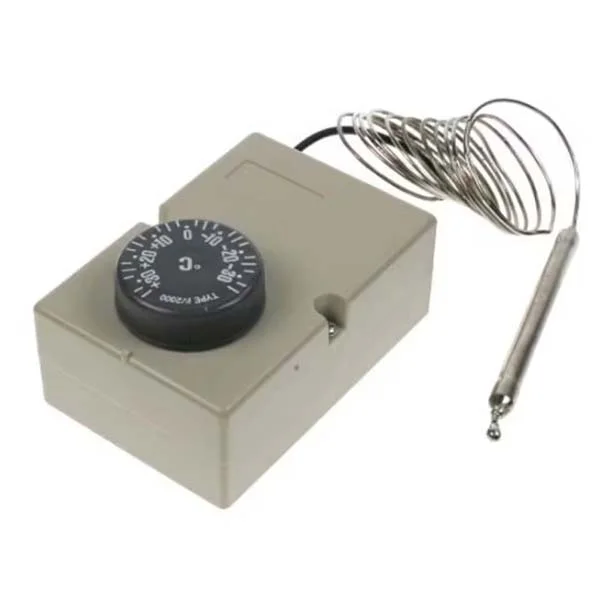

Thermostat

12 / 24V AC or DC supply. 2 relay outputs 7A 220V (Dry Contact). Momentary or Toggle relays with Jumper.

Protection Case

It stabilizes the efficiency of the working conditions of the mechanical and electronic structure inside the turnstile in extremely cold environments.

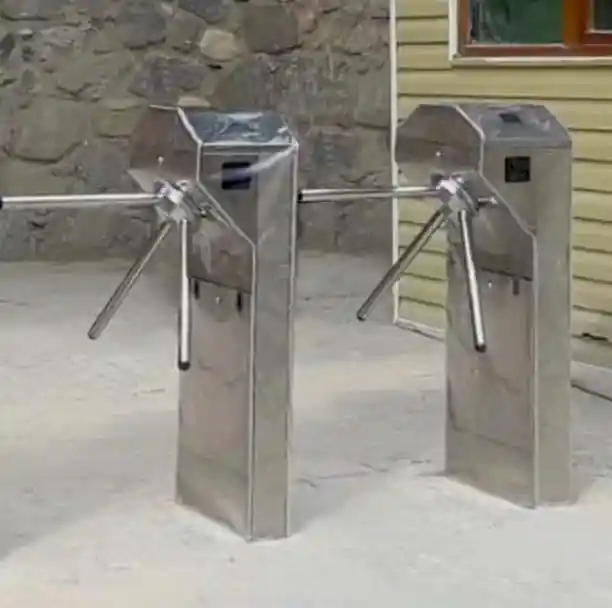

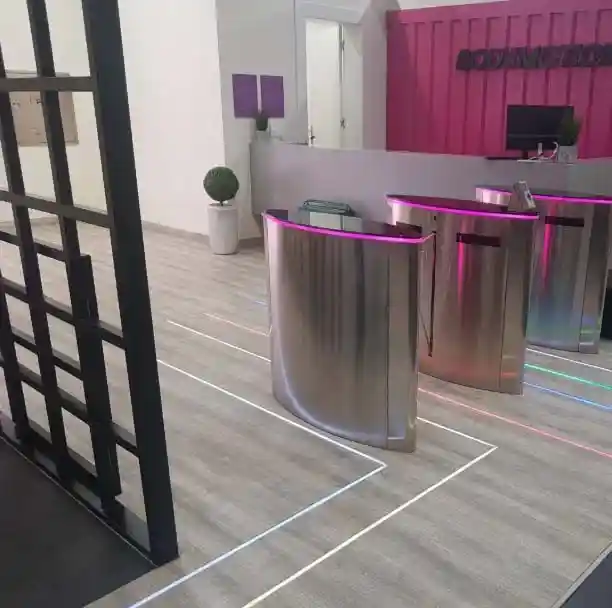

Some Uses of Waist High/Tripods Turnstiles

For the outdoor conditions, a special protective cover can be produced in a transparent structure that is suitable for the size of the turnstile.

Turnstile FAQ

How can I choose the right turnstile?
There are many things to consider when choosing a turnstile. From shift changes to one-way walkways or parkway entry, we need to consider how frequently it will be used, if it’s going to just count people or if you need to use access control fobs. There’s also a fee-based entry using tickets or tokens. We have a team that can help you design the correct system for your application.

Can I integrate my access control system with turnstiles?
Absolutely! Turnstiles are used in a wide variety of access control systems. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with turnstiles.

What will happen when the electricity goes off and in emergency situations?
Turnstiles instantly unlock under emergency situations (power outages, fire, etc) We can also make them lock under situations such as a lockdown.

Can I use turnstiles indoors and outdoors?
Turnstiles are made for indoor or outdoor situations. For all Outdoor applications, we use 316 stainless steel to prevent corrosion.

Can I operate turnstiles manually or remotely?
Turnstiles are to be operated by the user at the turnstile. You can have a person who monitors the turnstile from the surveillance terminal.

How do I give access to ADA pedestrians?
We need to have a wide bay for anyone who has disabilities to allow for wheelchairs.

What does the warranty cover?
Every product we sell comes with a one year warranty. It covers the control board, solenoids, springs, and motor. It also includes lifetime phone support..
