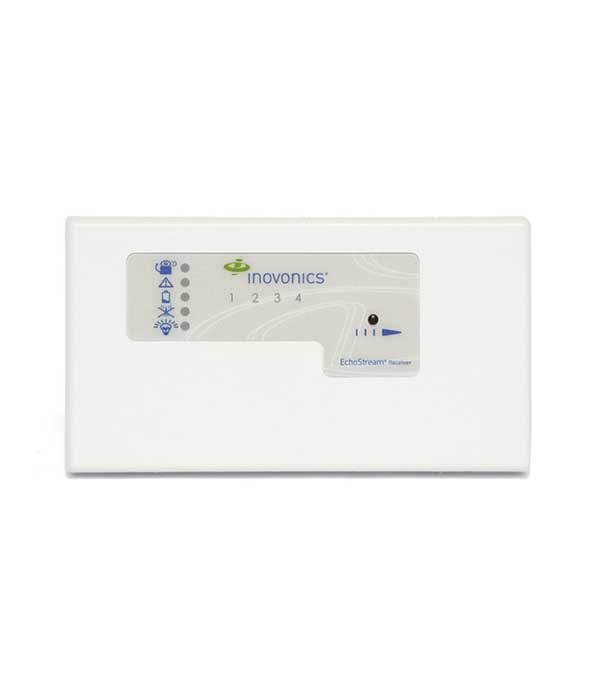

Inovonics EN4204R Four Zone Add-On Receiver with Relay Outputs

Inovonics EN4204R Four Zone Add-On Receiver with Relay Outputs



Description:

The Inovonics EN4204R is a four zone add-on receiver with relay outputs that can be used to program and monitor up to four Inovonics transmitters.

Equipped with Form C output relays, the EN4204R can connect to any hardwire panel. LEDs provide visual indication of transmitter status.

Receivers are the communication link between the wireless network and a security panel or an integrated application. Our family of receivers offer the ultimate flexibility for managing and monitoring the EchoStream wireless network. Choose between add-on receivers, providing wireless to virtually any control panel or a serial receiver which fully integrates Inovonics wireless to industry leading control panels and integrator developed, or PC based applications. All receivers feature Inovonics EchoStream technology with diversity reception and advanced signal processing to minimize nulls or dead spots, and provide superior performance in RF noisy environments.

To help ensure reliability. The airwaves are getting more crowded as the world goes wireless. Inovonics EchoStream utilizes a unique spread spectrum technology to maximize range and reliability. Virtually all competitive wireless systems send information on one very narrow band channel. Any in-band interference can result in missed signals.

Receivers have on-board Type C relays for N/O or N/C operation.
Jam detection monitors all channels for presence of interference.
A reset terminal is provided in the receiver to allow for externalized receiver resets.
A tamper terminal is provided in the receiver to allow for externalized tampers.

Features:

• Add up to four high performance EchoStream wireless transmitters to any installation
• LED allows the user to view the current status of all four transmitters
• Five form C relays for connecting to any panel: four alarm, one fault
• Outputs can be configured in follower, latching, momentary, or toggle modes independently
• Case tamper protection, jam detection, and internal antennas for a secure wireless implementation
• Wireless programming routine built into the receiver

Technical Specifications:

• Housing: 6.38″ x 3.60″ x 1.10″ (162 mm x 92 mm x 28 mm)
• Operating environment: 32- 140F (0- 60C), 90% relative humidity,
  non-condensing
• Current consumption: Approx. 135 mA; approx. ~400 mA max
• Receiver type: Frequency hopping spread spectrum
• Number of points/transmitters: Four
