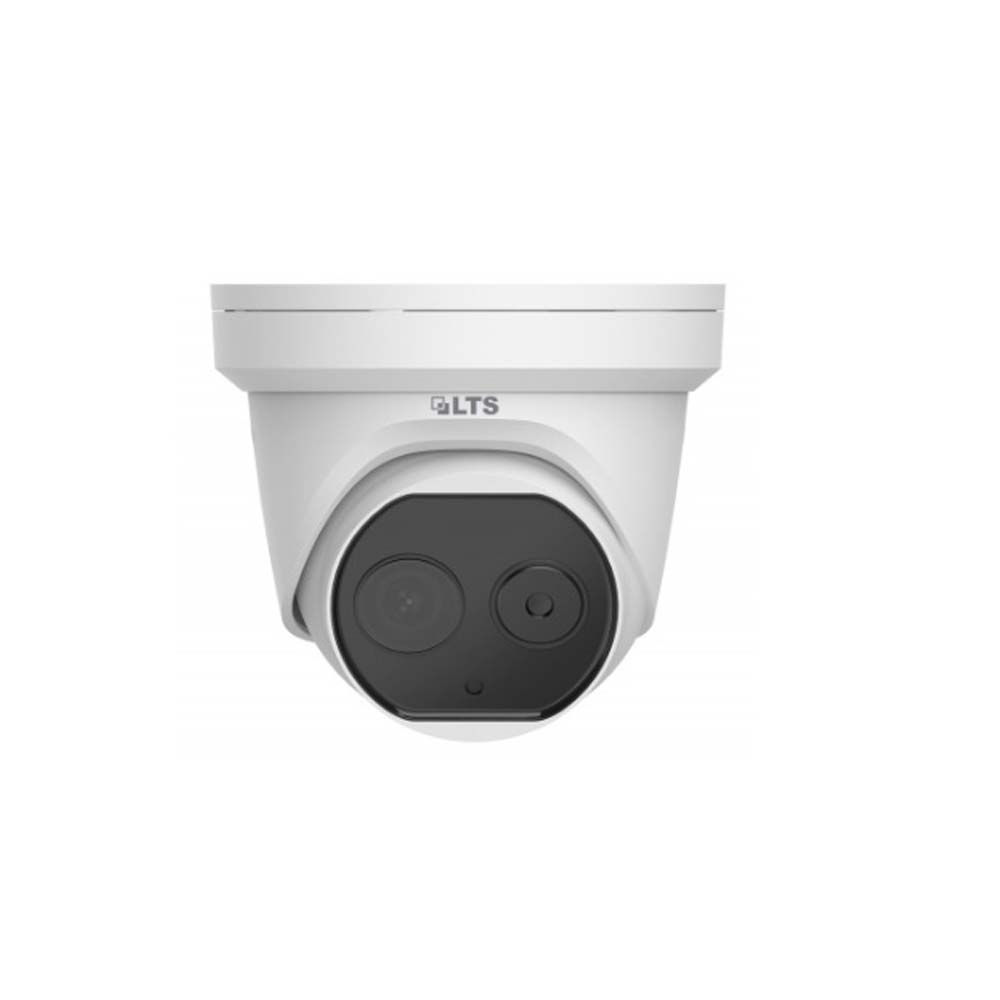

LTS CMIP3T22W1-2M 160×120 Thermal & Optical Outdoor Turret IP Security Camera

SKU : CMIP3T22W1-2M Categories ,

CMIP3T22W1-2M Thermal & Optical Network Turret Camera equipped with built-in GPU which support intelligent behavior analysis algorithm, can realize high precision VCA detection and real-time alarm. It is applied to fire-prevention purposes in indoor space such as: engine room, ATM, conference room, warehouse, museum, train station, gem, power station, and so on. The pre-alarm system helps you discover unexpected events immediately and protects you from property loss.

LTS CMIP3T22W1-2M 160×120 Thermal & Optical Outdoor Turret IP Security Camera



  • 160 x 120@25fps Thermal Image Sensor
  • 1.8mm Fixed Lens (Thermal)
  • 1920 x 1080@30fps
  • 2.1mm Fixed Lens (Optical)
  • True WDR 120dB
  • MicroSD Card Slot up to 128GB
  • Weatherproof IP67
  • 3 Year Warranty

Field Of View (Horizontal)

Night Vision Range

Lens Type



Lens Size



Camera Series Platinum Series
Camera Resolution 2.1MP / 1080P
Camera Technology Other
Camera Housing Turret
Featured Product No
Specifications Specification


Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 160 × 120 (the resolution of output image is 320 × 240)
Pixel Interval 17μm
Response Waveband 8μm to 14μm
NETD less than 40 mK (25°C), F#=1.1
Lens (Focal Length) 1.8 mm
MRAD 9.44 mrad
Field of View 90° × 66.4° (H × V)
Min. Focusing Distance 0.1 m
Aperture F1.1
Optical Module
Max. Image Resolution 1920 × 1080
Image Sensor 1/2.7” Progressive Scan CMOS
Min. Illumination Color: 0.002 Lux @(F1.2,AGC ON), B/W: 0.0002 Lux @(F1.2, AGC ON)
Shutter Speed 1s to 1/100,000s
Lens (Focal Length) 2.1 mm
Field of View 101.2° × 77°(H × V)
Day & Night IR cut filter with auto switch
Image Function
Bi-spectrum Image Fusion Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture Combins details of thermal and optical image PIP, overlay thermal image on optical


Smart Function
VCA (Video Content Analysis) 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to

8 VCA rules.

Temperature Measurement 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Temperature Range -20 °C to +150 °C (-4 °F to +302°F)
Temperature Accuracy ± 8 °C (± 14.4 °F)
Fire detection Dynamic fire point detection, up to 10 fire points detectable.
IR Distance Up to 49ft(15 m)
IR Intensity and Angle Automatically adjusted

Main Stream

Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)

Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))




Sub Stream

Visible Light: 50Hz: 25fps (704 × 576), 25fps (640 × 480)

Visible Light: 60Hz: 30fps (704 × 480), 30fps (640 × 480)

Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))

Video Compression H.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile
Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCM

UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Simultaneous Live View Up to 20
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x

access control, IP address filtering

Alarm Input 1-ch inputs (0-5vDC)
Alarm Output 1-ch relay outputs, alarm response actions configurable
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input 1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
Audio Output Linear Level; Impedance: 600Ω
Reset 1 Reset Button
Ethernet 1 RJ45 10M/100M Self-adaptive Ethernet interface, 1 RS-485 interface
SD Memory Card Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support

manual/alarm recording

Analog Video Output 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application Programming Open-ended API, support ISAPI, SDK and third-party management platform
Web Browser IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
Menu language English
Power 12 VDC± 20%, two-core terminal block

PoE (802.3af, class 3)

Power Consumption 12 VDC ± 20%: 0.7 A, max. 8W

PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8.5W

Working Temperature/Humidity -30 °C to 60 °C (-22 °F to 140 °F), 95% or less
Protection Level IP67 Standard

TVS 6000V Lightning protection, surge protection, voltage transient protection

Dimensions 138.3 mm × 138.3 mm × 123.1 mm (5.45 ” × 5.45″ × 4.85 “)
Weight 900 g (1.98 lb)



Detection Range Table

* The table is only for reference, the performance may vary from camera to camera.

Different targets trigger the VCA events within different range limits.


VCA Range (Vehicles:


VCA Range (Humans:


Temperature Measurement

(Object:2×2 m)

Temperature measurement

(Object:1×1 m)

Fire Detection (Object:2×2 m) Fire Detection (Object:1×1 m)
42 m 14 m 44 m 22 m 108 m 54 m

Wide Range Coverage

There is range limit for detecting, recognizing, and identifying human/vehicle targets.


Detection Range (Vehicles:


Detection Range (Humans:


Recognition Range (Vehicles:


Recognition Range (Humans:


Identification Range (Vehicles:


Identification Range (Humans:


162 m 53 m 41 m 13 m 20 m 7 m
