| Specifications |
|
Camera |
|
Image Sensor |
1/1.8” Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.047 Lux @ (F2.6, AGC ON),
B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1 s to 1/100,000 s |
|
Slow Shutter |
Yes |
|
Day & Night |
IR Cut Filter |
|
Digital Noise Reduction |
3D DNR |
|
WDR |
Digital WDR |
|
Lens |
|
|
Focal Length |
1.27 mm |
|
Aperture |
F2.6 |
|
FOV |
Horizontal FOV 180° (wall mount), 360°(ceiling mount), 360°(table mount) |
|
Lens Mount |
M12 |
|
IR |
|
|
IR Range |
Up to 50ft(15 m) IR range, 3 LEDs. Each LED is independently controlled. |
|
Wavelength |
850 nm |
|
Compression Standard |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG |
|
H.264 Type |
Baseline Profile/ Main Profile /High Profile |
|
H.264+ |
Main stream supports |
|
H.265 Type |
Main Profile |
|
H.265+ |
Main stream supports |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
SVC |
H.265 and H.264 support |
|
Smart Feature-set |
|
Behavior Analysis |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
|
Exception Detection |
Audio exception detection |
|
Region of Interest |
4 fixed regions for main stream and sub-stream |
|
Image |
|
Max. Resolution |
3072 × 2048 |
|
Main Stream Max. Frame Rate |
50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280) |
|
Sub Stream
Max. Frame Rate |
50Hz: 25fps (720 × 720, 720 × 480)
60Hz: 30fps (720 × 720, 720 × 480) |
|
Image Enhancement |
BLC, HLC, defog, 3D DNR |
|
Image Setting |
Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser |
|
Day/Night Switch |
Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
|
Picture Overlay |
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
|
Live View Display |
|
Mount Type |
Support table, wall, and ceiling mounting |
| Decoding Mode |
Support hardware decoding and software decoding |
|
|
Display Mode |
18 display modes in total Software decoding:
Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder
Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ
Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder
Hardware decoding:
Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion |
|
| Audio |
|
| Environment Noise Filtering |
Yes |
|
| Audio Sampling Rate |
8 kHz/16 kHz |
|
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM |
|
| Audio Bit Rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
|
| Network |
|
| Network Storage |
Support microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR |
|
| Alarm Trigger |
Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error |
|
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
|
|
Security Measure |
Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF |
|
| General Function |
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
|
| API |
ONVIF (PROFILE S, PROFILE G), ISAPI |
|
| Simultaneous Live View |
Up to 20 channels |
|
| User/Host |
Up to 32 users. 3 user levels, administrator, operator and user |
|
| Web Browser |
IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+ |
|
| Interface |
|
| Communication Interface |
1 RJ45 10M/100M/1000M self-adaptive Ethernet port |
|
| Audio |
1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm); 2 built-in microphone, 1 built-in speaker, mono sound |
|
| Alarm |
1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A |
|
| On-board storage |
Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
|
| Reset Button |
Yes |
|
| General |
|
| Operating Conditions |
-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing) |
|
|
Power Supply |
12 VDC±20%, PoE (802.3af, class 0),
two-core terminal block |
|
|
Power Consumption |
12 VDC, 0.9 A, max. 11 W
PoE (802.3af, 36 to 57 V), 0.3 A to 0.2 A, max. 12 W |
|
| Protection Level (-V) |
IP67, IK10 |
|
| Material |
Metal |
|

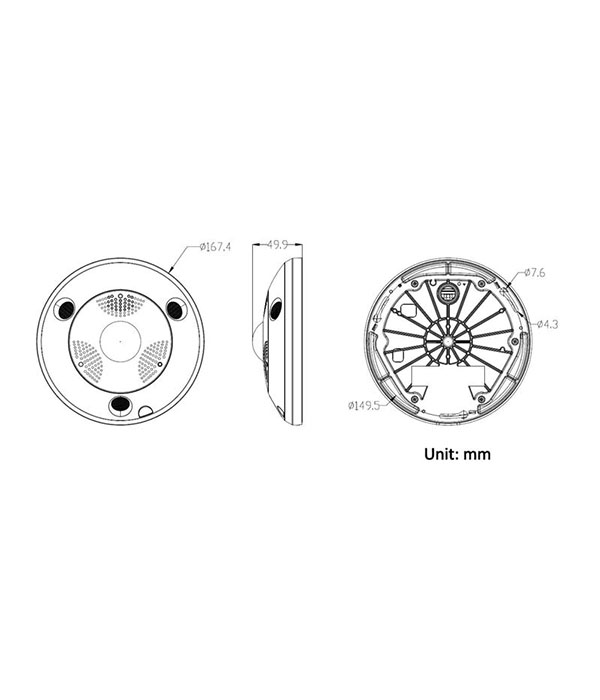

| Dimensions |
φ 167.4 × 49.9 mm (φ 6. 6″× 2.0″) |
| Weight |
Approx. 1347 g (2.97 lbs) |
|
