| Specifications |
| Camera |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Min. Illumination |
0.0014 @ F1.0 (1/30 s, AGC ON), 0.002 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Slow Shutter |
Yes |
| Focal length |
2.8 mm |
| Focus |
Fixed |
| Aperture |
F1.0 |
| FOV |
2.8 mm, horizontal FOV: 102°, vertical FOV: 51°, diagonal FOV: 125° |
| Lens Mount |
M16 |
| Auto-Iris |
No |
| DNR |
3D DNR |
| Wide Dynamic Range |
120dB |
| 3-Axis Adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Compression Standard |
|
Video Compression |
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.264+ |
Main stream supports |
| H.265 Type |
Main Profile |
| H.265+ |
Main stream supports |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| Image |
| Max. Resolution |
2560 × 1440 |
|
Main Stream |
50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 24fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
|
Sub Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
Third stream |
50Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240)
60Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240) |
| Image Enhancement |
BLC/3D DNR/HLC/Defog |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| ROI (Region of Interest) |
No |
| Network |
| Network Storage |
Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger |
Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function |
One-key reset, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| API |
ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View |
Up to 6 channels |
|
User/Host |
Up to 32 users
3 levels: Administrator, Operator and User |
| Web Browser |
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Interface |
|
| Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage |
Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button |
Yes |
| SVC |
H.265 encoding and H.264 encoding support |
| Smart Feature-set |
| Behavior Analysis |
Line crossing detection, intrusion detection |
| General |
| Operating Conditions |
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
|
Power Consumption |
12 VDC, 0.5 A, max: 6 W
PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max: 7.5 W |
| Visible Light Range |
Warm white LEDs (3000K), up to 98ft(30m) |
| Protection Level |
IP67 |
|
Material |
Camera body: Front cover: plastic, back cover: metal Bottom base: plastic |

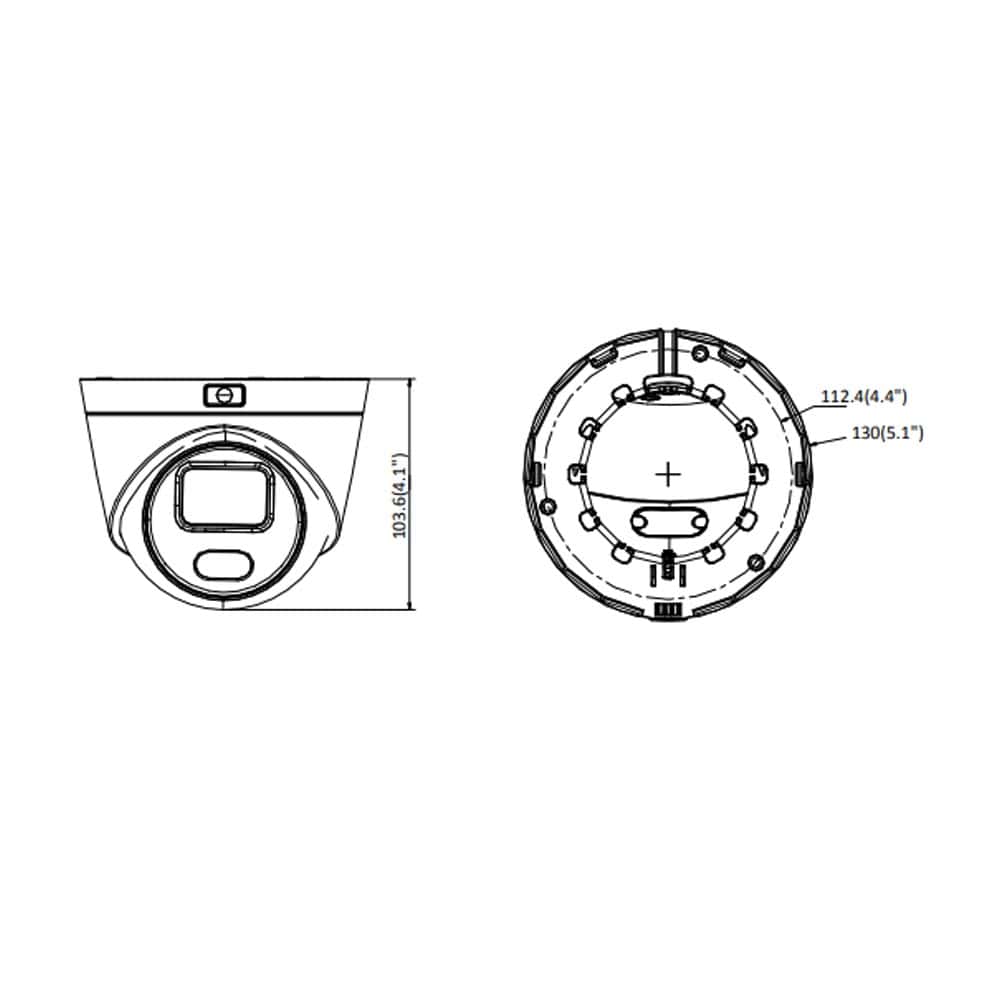

| Dimensions |
Camera: Φ130 × 103.6 mm (Φ5.1″ × 4.1″) |
| Weight |
Camera: 500 g (1.1 lb.) |
|
