LTS CMIP7553W4-SZ8 4x 5MP Multi-sensor Outdoor Dome IP Security Camera

5mp, 1/2.7″ Progressive Scan CMOS, 2560 x 1920 @ 25fps, H.265, H.264, H.265+, H.264+, Up to 30m IR range, 4 Flexible lens, 120dB WDR, IP67, IK10

LTS CMIP7553W4-SZ8 4x 5MP Multi-sensor Outdoor Dome IP Security Camera



Features:

  • 20 MP (4x 5MP)
  • 1/2.7″ Progressive Scan CMOS
  • Varifocal lens, 2.8 to 8 mm
  • Horizontal FOV 100? to 49?
  • 2560 x 1920 @ 25fps
  • H.265, H.264, H.265+, H.264+
  • Up to 30m IR range
  • 4 Flexible lens
  • 120dB WDR
  • Weatherproof IP67,
  • Vandal Proof IK10
  • Motion detection
  • Built-in microSD/SDHC/SDXC card (up to 128 GB)
  • ONVIF
  • Only need 1 Network Cable. Save Labor, Save Money
Brand

Field Of View (Horizontal)

,

Compression

, , ,

Lens Type

Technology

Resolution

Lens Size

Warranty

Night Vision Range

Specifications

Camera Series Platinum Series
Camera Resolution 5MP
Camera Technology IP / Network
Camera Housing Dome
Featured Product No
Specifications





Camera
Image Sensor 1/2.7″ Progressive Scan CMOS
Min. Illumination Color: 0.0125 Lux @ (F1.9, AGC ON); B/W: 0.0025 Lux @ (F1.9, AGC ON)
Shutter Speed 1 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR cut filter
WDR 120 dB
Angle Adjustment Pan: -60° to 60°, tilt: 10° to 90°
Lens
Lens Type Varifocal lens, 2.8 to 8 mm
Aperture F1.9
Focus Manual, semi-auto
FOV Horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4°
Lens Mount Φ14
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Video
Max. Resolution 2560 × 1920
Video Stream 3 defined streams
Main Stream 50Hz: 25fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)

60Hz: 24fps (2560 × 1920, 2048 × 1536,1920 × 1080, 1280 × 720)

Sub Stream 50Hz: 25fps (704 × 576, 640 × 480)

60Hz: 24fps (704 × 480, 640 × 480)

Third Stream 50Hz: 6fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60Hz: 8fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)



Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream support
H.265 Type Main Profile
H.265+ Main stream support
Video Bit Rate 32 Kbps to 16 Mbps
Scalable Video Coding (SVC) H.264 encoding



Audio (-S)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Smart Feature-Set


Smart Event

Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable

Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable

Scene change detection, audio exception detection, defocus detection

Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
Region of Interest 4 fixed regions and dynamic face tracking for each stream
Image Enhancement BLC, HLC, 3D DNR, Defog, EIS
Image Setting Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping Yes
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
SNR ≥52dB
Network
Network Storage microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK


Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/ HTTPS, WSSE and digest authentication for ONVIF
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Client NVMS V3, LTS Connect
Web Browser IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11





Interface
Audio (-S) 1 input (line in), 1 output (line out), mono sound
Communication Interface 1 RJ45 10M/100M/1000M Ethernet port; built-in RS232

1 RS-485 interface (half duplex, Pelco-P, Pelco-D, self-adaptive)

Alarm (-S) 2 inputs, 2 outputs (max. 24 VDC, 1A)
On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
General
Firmware Version V5.5.32


Web Client Language

32 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General Function Anti-flicker, 3 streams, heartbeat, mirror, privacy masks
Reset Reset via reset button on camera body, web browser and client software
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)


Power Supply

12 VDC± 20%, reverse polarity protection; three-core terminal block 24 VAC ± 20%;

PoE (802.3at, class 4)



Power Consumption and Current

12 VDC, 1.8 A, 22 W

24 VAC, 1.4 A, 22 W

PoE (802.3at, 42.5 to 57 VDC), 0.44 to 0.33 A, 19 W, class 4

Material Bubble & IR cover: plastic, camera: metal

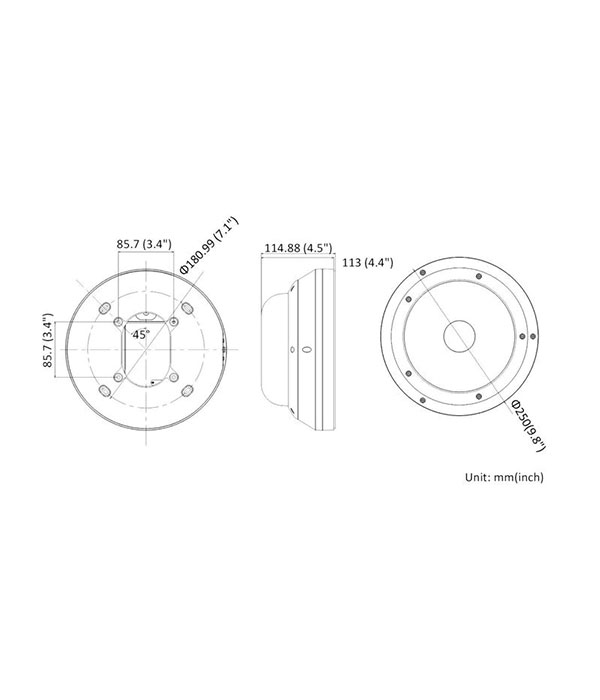

Dimensions Camera: Φ250 × 113 mm (9.8″ × 4.4″)

Package: 336 × 261 × 293 mm (13.2″ × 10.3″ × 11.5″)

Weight Camera: 2.125 kg (4.7 lb); with package: 3.899 kg (8.6 lb)
Approval


EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013,

EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:

2015, KN 35: 2015

Safety UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Chemistry 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Protection Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time.
