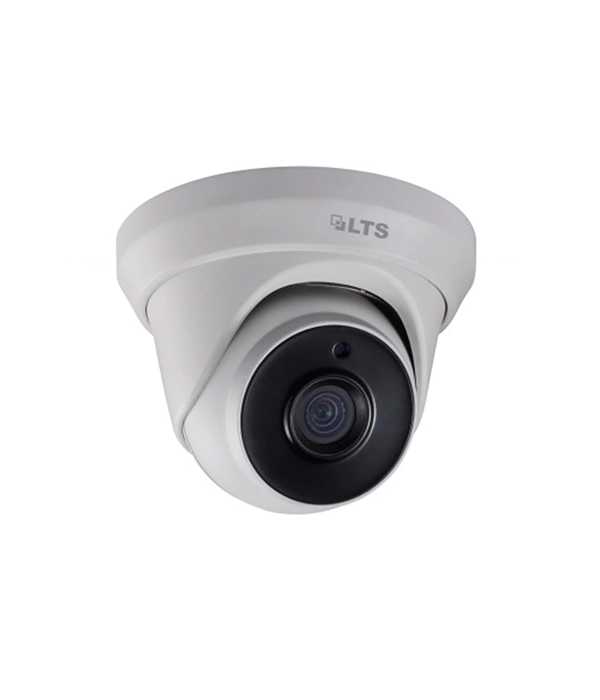

LTS CMHT1722WE-28F 2MP IR Ultra-Low Light Outdoor Turret HD-CCTV Security Camera

SKU : CMHT1722WE-28F Categories ,

  • Field of View (Horizontal) : 104°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Protection Code : IP67
  • Environmental : Outdoor
  • Weatherproof : Yes

LTS CMHT1722WE-28F 2MP IR Ultra-Low Light Outdoor Turret HD-CCTV Security Camera



  • 2 MP high performance CMOS
  • Ultra-low light
  • 1920 ? 1080 resolution
  • 2.8 mm fixed focal lens
  • 130 dB true WDR, 3D DNR
  • Matrix IR 2.0, smart IR, up to 197ft(60 m) IR distance
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • Weatherproof IP67
  • OSD Menu via UTC technology with Platinum DVR
Weight 0.315 lbs
Dimensions 11 × 9.3 cm


Lens Type


Night Vision Range


Lens Size

Field Of View (Horizontal)


Camera Series Platinum Series
Camera Resolution 2MP
Camera Technology HD-TVI
Camera Housing Turret
Featured Product No

Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Resolution 1920 (H) × 1080 (V)
Frame Rate PAL: 1080p@25fps

NTSC: 1080p@30fps

Min. illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Lens 2.8 mm fixed focal lens
Horizontal Field of View 104° (2.8 mm)
Lens Mount M12
Day & Night IR cut filter
WDR (Wide Dynamic Range) ? 130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
AGC Support
Day/Night Mode Auto/Color/BW (Black White)
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR/BLC/HLC/Global
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
NR (Noise Reduction) 3D/2D
Language English
Functions Brightness, Sharpness, Mirror, Smart IR, HLC
Video Output Switchable TVI/AHD/CVI/CVBS
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±25%

*You are recommended to use one power adapter to supply the power for one camera.

Power Consumption Max. 3.4 W
Ingress Protection IP67


Enclosure: Plastic Main Body: Metal
IR Range Up to 197ft(60 m)
Communication Up the coax, TVI output
Dimensions Ø 110 mm × 93.2 mm (? 4.33″ × 3.67″)
Weight Approx. 315 g (0.69 lb.)
